GARAGE DOORS

WHAT IS GARAGE DOOR ?

The garage door is a sectional door model that provides a high level of insulation, which is used to protect the car entrance and exit sections of the car parks of the residences, the car parks of the shopping centers and the private garages of the villa type private properties.

While decorative garage doors protect from all kinds of natural conditions, they also provide security against thieves. Sectional garage doors are one of the most preferred systems in closed garages of buildings and sites as well as in detached buildings. The panels of decorative garage doors consist of decorative cassette panels with finger-squeeze protection and can be lined and / or double-walled decorative windows can be applied on the panels optionally.

In decorative garage doors, the windows provide light entry to the garage and give the door a stylish appearance. By using the distance between the ceiling height and the door transition height in the most appropriate way, the rollers connected to the panels slide in the rail.Decorative garage door works with 22 cm turning distances according to the height measurement detail.

Decorative garage doors are manufactured in accordance with the dimensions with sandwich panels and accessories with European quality certificates, produced by us. Decorative garage door consists of steel sandwich panels. Sandwich panels are obtained by injecting high pressure polyurethane between galvanized steel sheets. Excellent sound and heat insulation is provided by high pressure polyurethane. The wind resistance of the panels is Class 5 test degree.

The plates on the front and back surfaces of the decorative garage door panels are interlocked with each other in 4 layers, so there are no problems such as material separation between the interior and exterior surfaces. Decorative panels have a special finger compression protection system, this feature prevents any fingers from getting caught between the panels.

Decorative garage door is embedded in the distance between the transition height and the ceiling height. (Lifting is about a quarter circle used for turning while opening the door and pulling it parallel to the ceiling.) Decorative garage doors can be easily opened manually with a 24 V-DC / 50 Hz electric motor and a double torsion spring (wind-up) system that balances the door weight. Door weight does not force the user and automation because of the springs.

EPDM gaskets between the decorative garage door panels, on the door, on the sides and bottom rows prevent dust, air and rainwater from entering. Hollow EPDM gasket located under the garage door ensures that the door fits smoothly on the ground.

To increase the wind resistance of the sectional decorative garage door, the panels are reinforced with steel plates from the inside. In addition, it is reinforced with a 4-layer sheet metal structure to prevent deformation in the places where the hinges and door handles are located. The wheel sets that provide the movement of the door on the rails are made of noise-canceling polyamide to ensure quiet operation.

Traction motor systems with domestic brand, Italian and German technology CE and ISO 9001 standards are used in decorative garage doors. It works very quietly. Any number of remote controls can be coded. An additional button can be connected, a bulb is connected to the output on the engine for lighting. Motor limit settings can be made easily with electronic switches.

In case of power outages, the door can be opened easily by taking the motor to the manual. If there is no other entrance to the garage, the manual take-up lever must be kept outside with a key. Optionally, automatic closing can be provided and a safety photocell can be connected. Long-life traction motors do not require lifetime lubrication. Decorative garage door panels can be fitted with semicircular and rectangular sectioned double-walled decorative windows for lighting. The panel types used in ISO 220 models are below. As standard, its outer – inner side is RAL 9002. It can be easily adapted to your structure by painting it in the desired color.

ISO 220 MODEL PREFERENCES
  • Rib, MicroRib, Flat and Cassette Sandwich Panels,
  • The spring set consists of double springs,
  • Special side consoles for torsion spring system,
  • White painted side covers,
  • Galvanized intermediate hinges,
  • Galvanized side hinges with adjustable roller holder,
  • Fixed single roller system,
  • Painted torsion springs,
  • 2 mm galvanized steel rail set,
  • Double-walled side sealing gasket that can be mounted on rails,
  • Galvanized steel top sealing profile,
  • Double wall top sealing gasket,
  • Aluminum bottom sealing profile,
  • Epdm bottom sealing gasket,
  • Empty pipe shaft with keyway,
  • Rear C profile,
  • Rack connection profile,
  • Door Handle.
ISO 150 MODEL PREFERENCES
  • Rib, MicroRib, Flat and Cassette Sandwich Panels,
  • The spring set consists of double springs,
  • Special side consoles for tension spring system,
  • White painted side covers,
  • Galvanized intermediate hinges,
  • Galvanized side hinges fixed model,
  • Adjustable double roller system,
  • Painted torsion springs,
  • 2 mm galvanized steel rail set,
  • Double-walled side sealing gasket that can be mounted on rails,
  • Galvanized steel top sealing profile,
  • Double wall top sealing gasket,
  • Aluminum bottom sealing profile,
  • Epdm bottom sealing gasket,
  • Empty pipe shaft with keyway,
  • Rear C profile,
  • Rack connection profile,
  • Door Handle.
GARAGE DOOR TECHNICAL PREFERENCES
  • Isodoor panels were tested in Europe at 2019 according to the  ISO EN 13241-1 quality management system by SP company and has been successful.
  • The door panels are 40 mm thick (0,5 mm galvanized steel + 50 m3 polyurethane + 0,5 mm galvanized steel)
  • There are weatherstrips between the two panels.
  • Inner and outer sheets of the panels are fixed to separation
  • Two panels are joined by hinge and have been the integral structure
  • Polyurethane CFC freeand protects your door of mildew and bacteria
  • Heat transfer coefficient of the panels are 0:50 W / m² • C.
  • Polyurethane filler density of 50 m3
  • Polyurethane fillers average thermal conductivity of 9,97 C degrees at 0,017Kcall/(m.K)
  • Wind resistance of polyurethane filler is EN 12444, 12427 Std, Class en 12424 and Class3.
  • The waterproofing value is EN 12425 class2.
  • Air permeability value is EN 12426, EN12427Std, class EN12424 class3
  • Panels has a finger-safe protection
  • Weight of panels are 10,5 kg/m2
  • When the doors length higher than 6 m, reinforcement profile are used on the doors.
  • Spring are galvanized or
  • Cable is cut to length and assembled aircaft, 6×19=114 steel wire with PP core
  • The shafts used in door are galvanized.
  • Spring wire has after coiling , received heat treatment.Also available in power coated or natural And fix-to-size assembled.
  • Door rails and brackets , made of 2 mm galvanized metal
  • Door rail profile has a special twist.This twist keeps wheel in the rail.
  • Bracket and rail profile are connected to the pneumatic clamping and It has strong structure
  • Whells which is located in the rail an edge of the doors are fabricated by polyamid and these polyamid prevents noise
  • Doors have opto-laser safety systems which is bottom of doors in plastic gasted. When doors are closing, if you have small soft touch, door can open to up side.
  • There is a combination section that is located between door panels and is useful for impermeability and also there is a rubber seal though integrated panel.
  • A rubber outer seal ring with double-lipped which is useful door impermeability and also protects flexibility until 30 degree is located between door panel and upperwall and sidewall
  • There is a special porus flexible roving which provides impermeability between door panel and floor and it enables the door to lock on the ground and also this roving is situated into profile of the door’s lower panel.

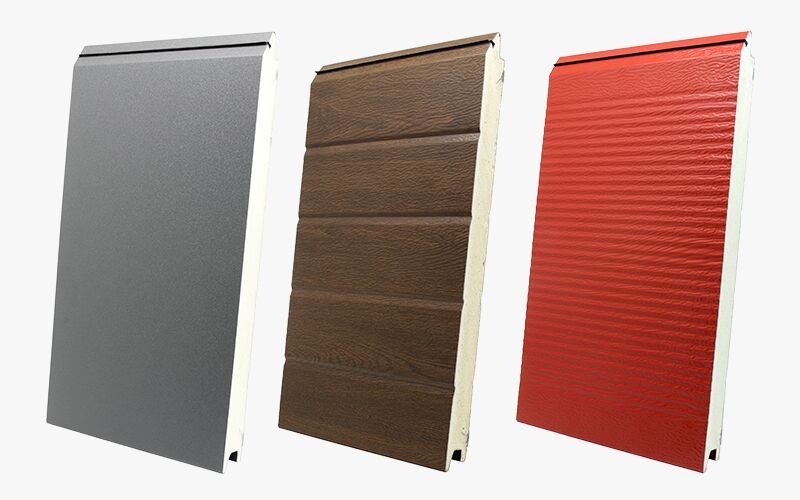

Sandwich Panel Models

Sandwich panels can now appear to be fully compatible with these structures. With different models and colors, industrial and garage doors gain a modern look.

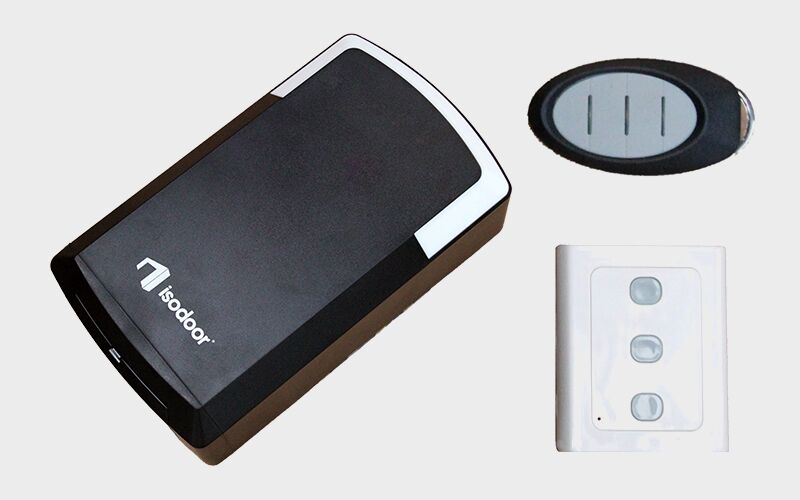

Garage Door Openers

There are many different models of motor and safety photocell systems to be used in garage doors. You can choose accessories according to your needs.

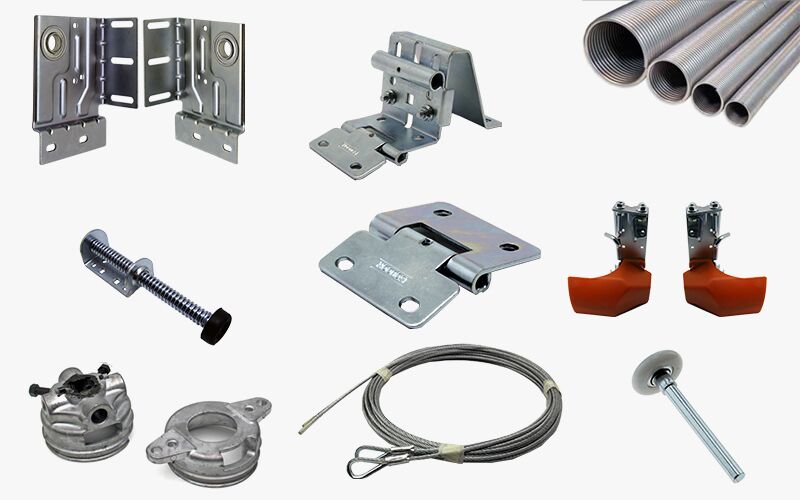

Sectional Door Hardwares

Approximately 35 different pieces of products are used in sectional doors, depending on the dimensions. These parts are sent ready for assembly.

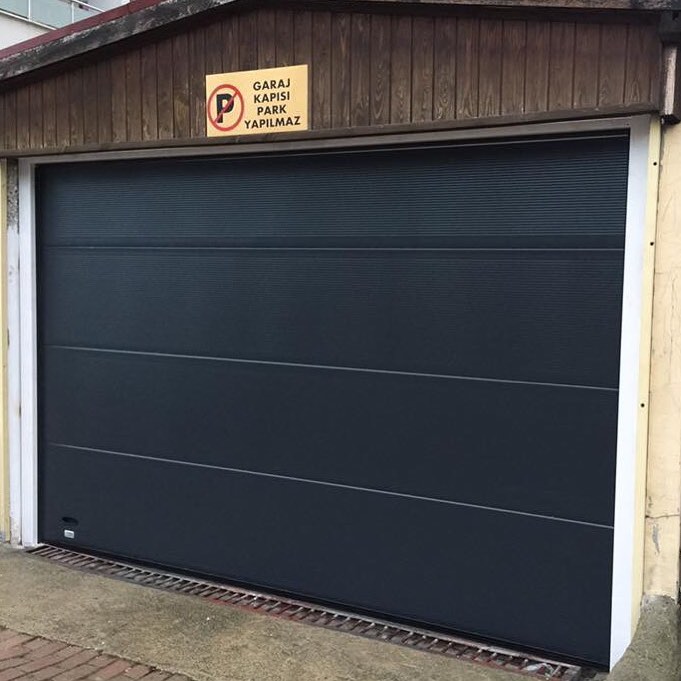

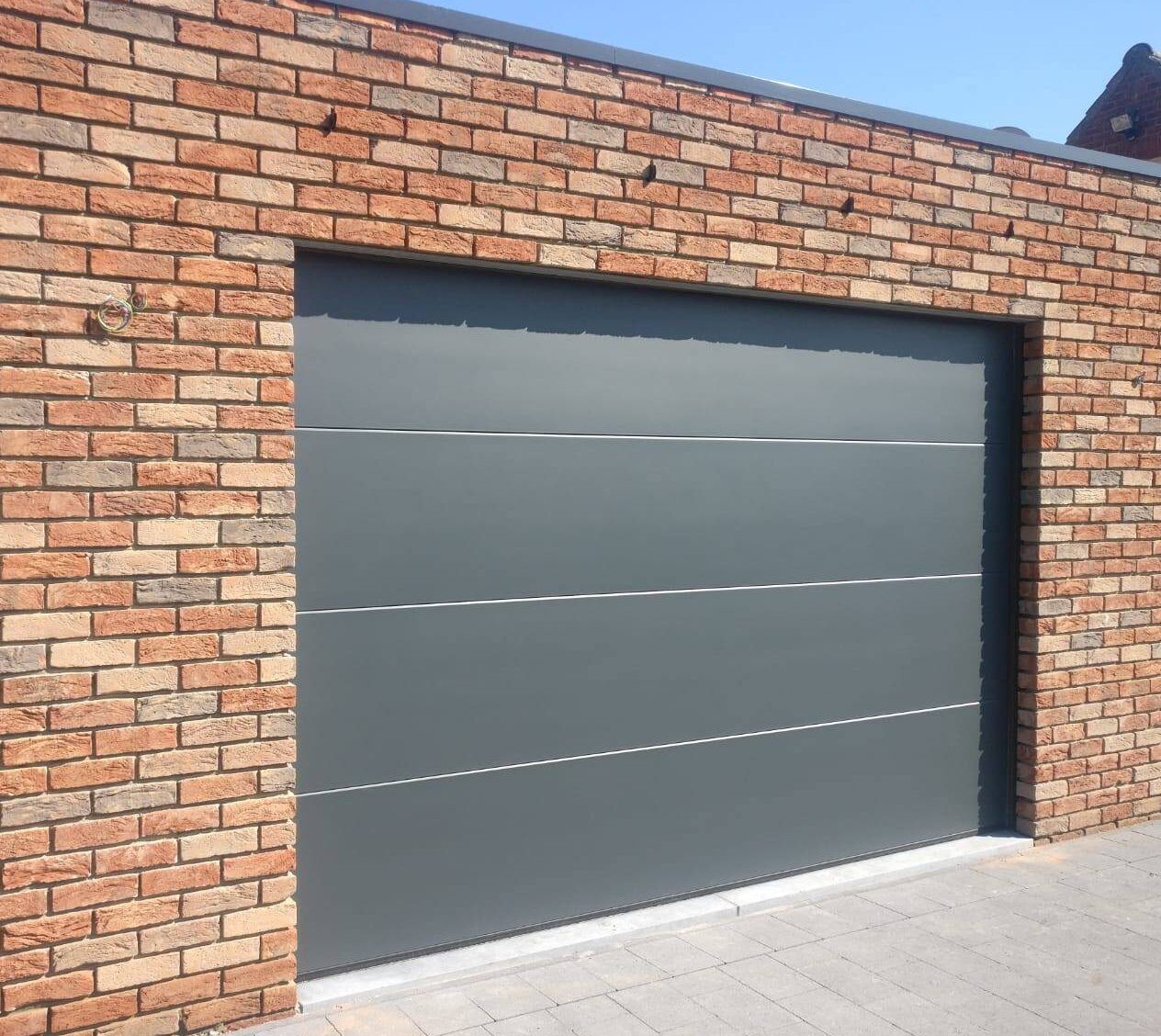

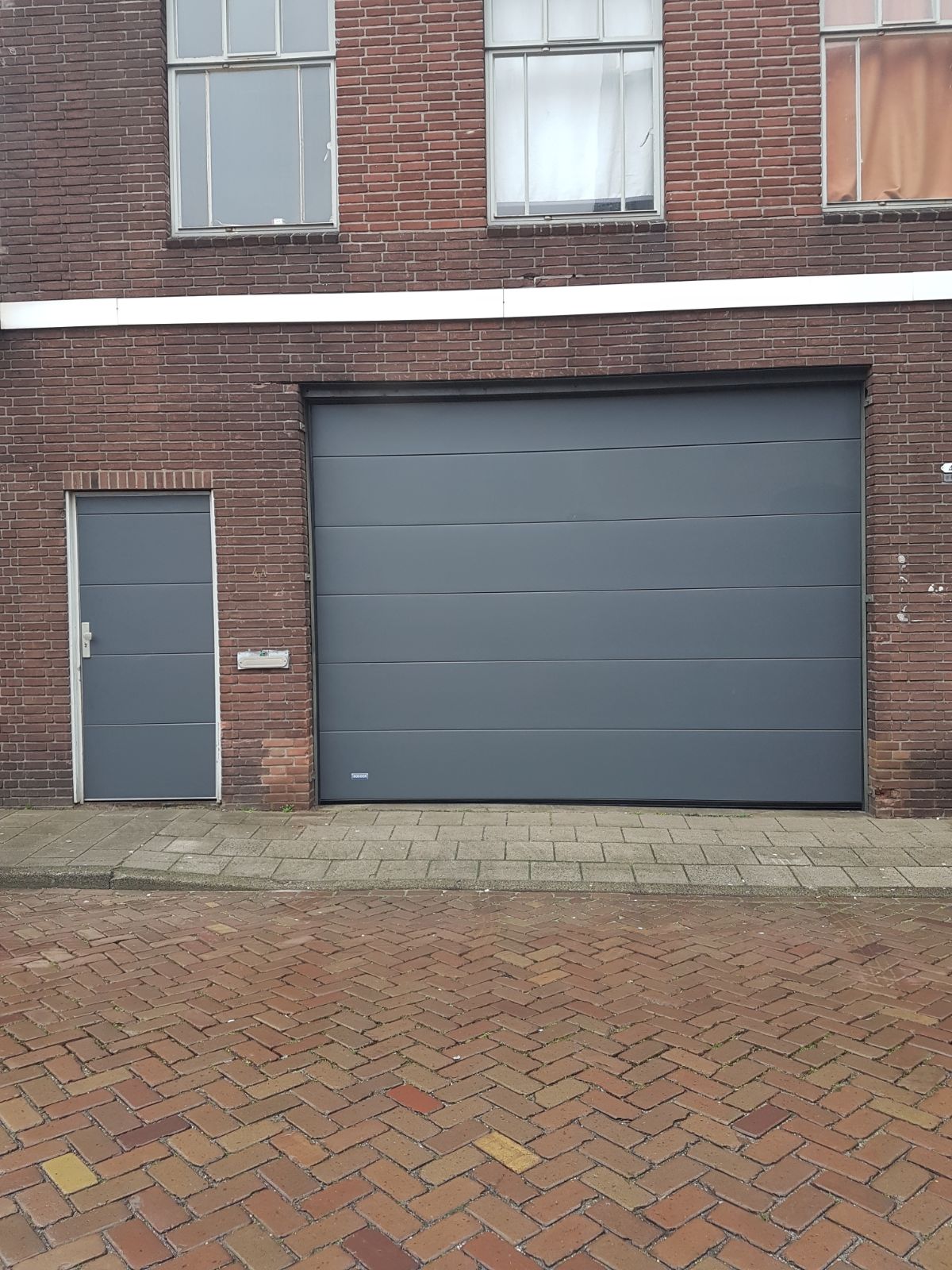

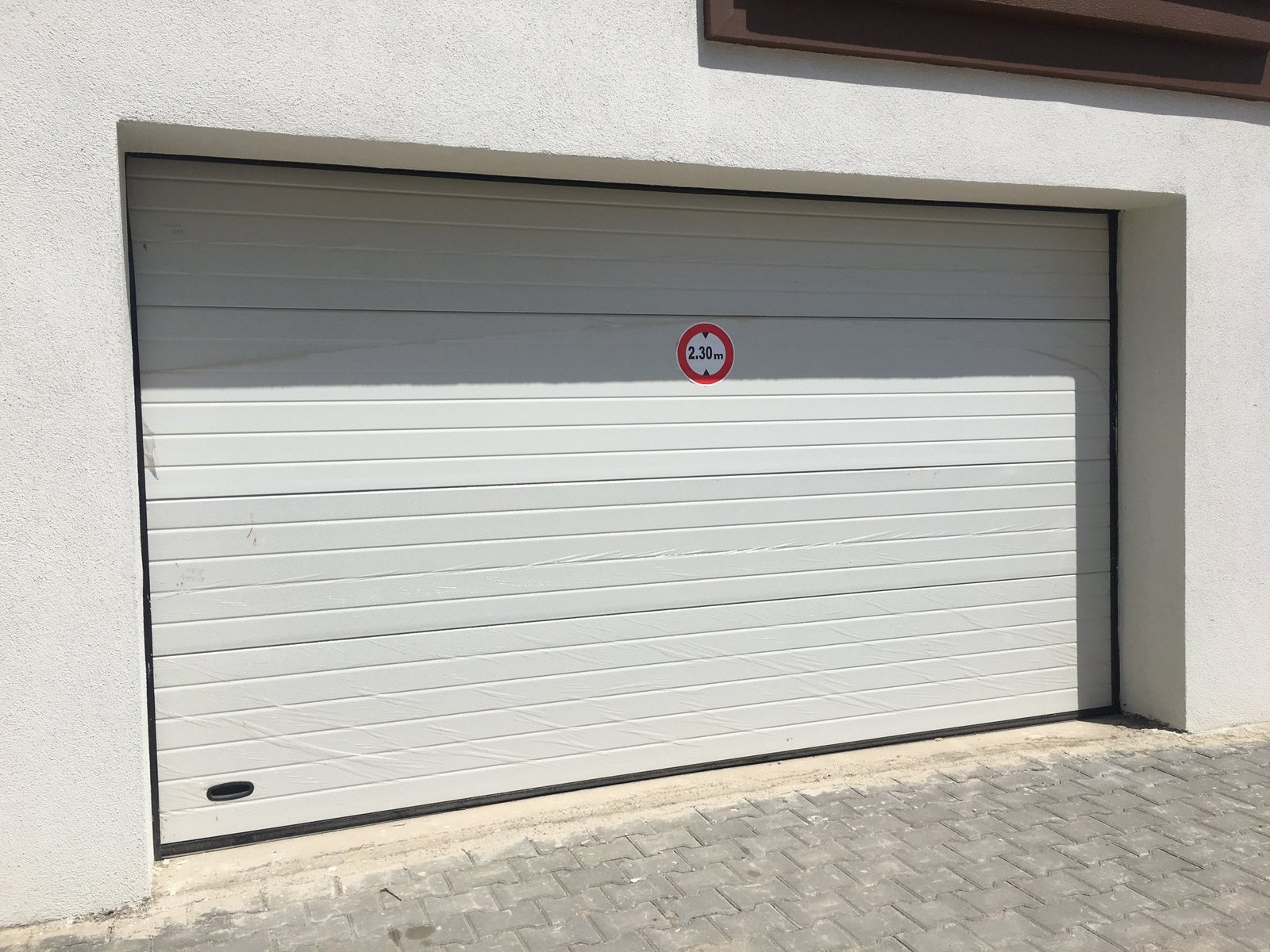

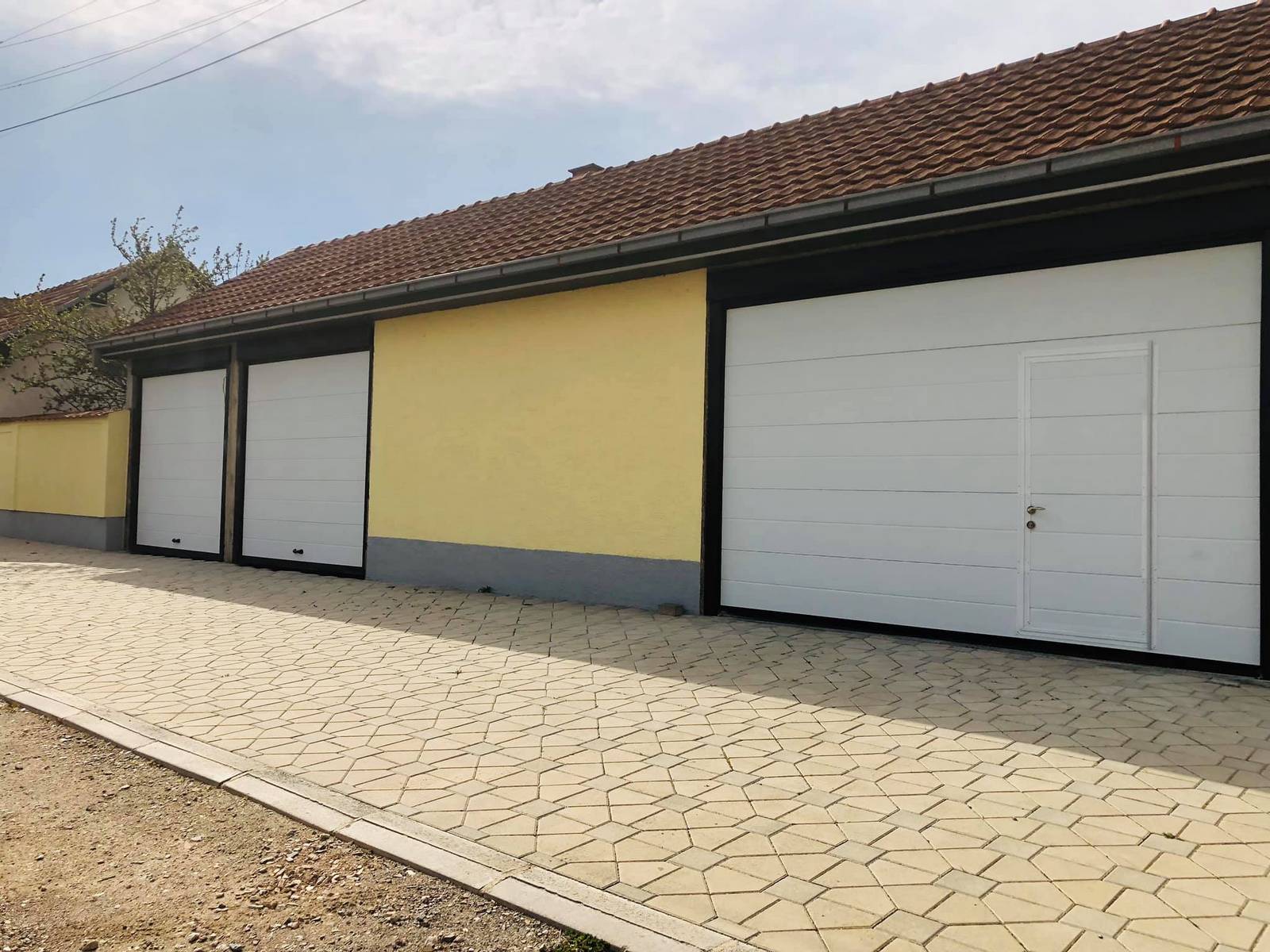

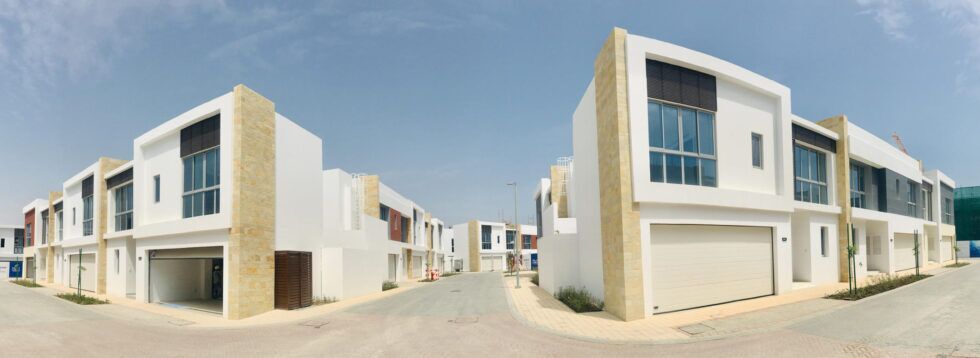

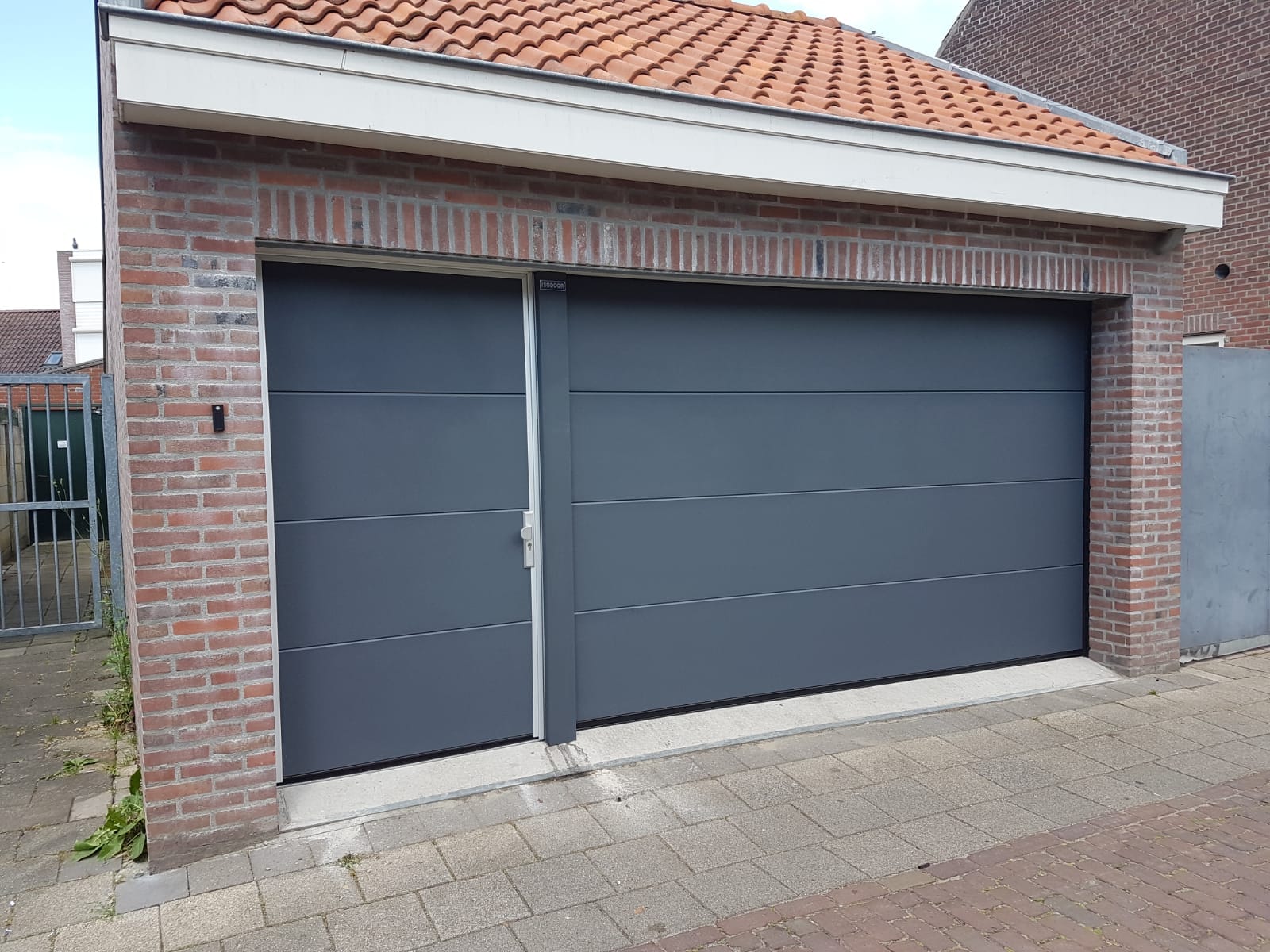

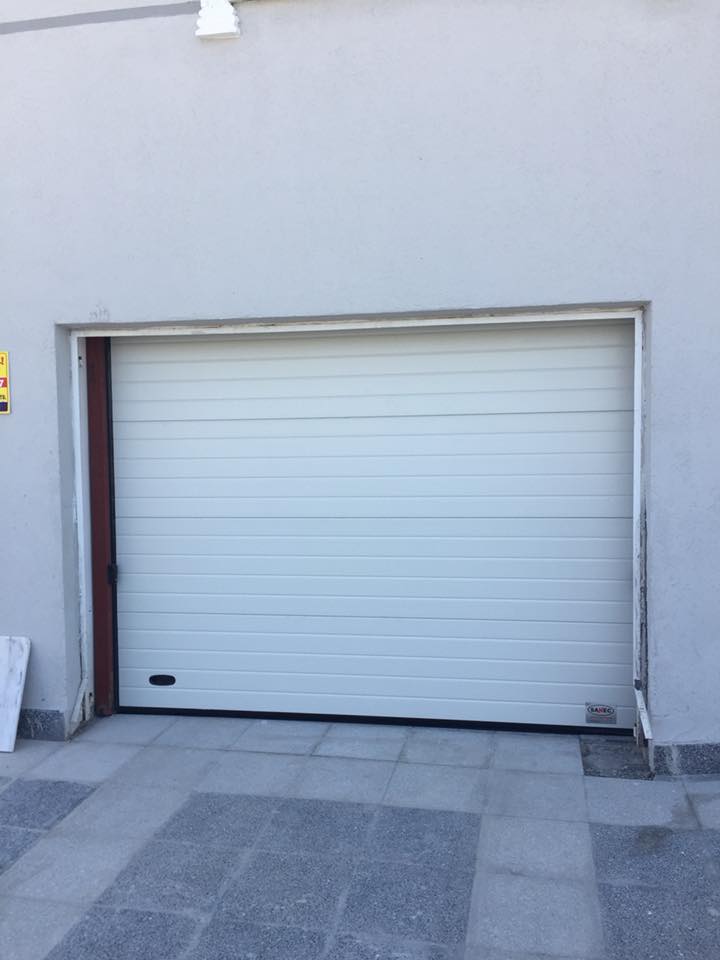

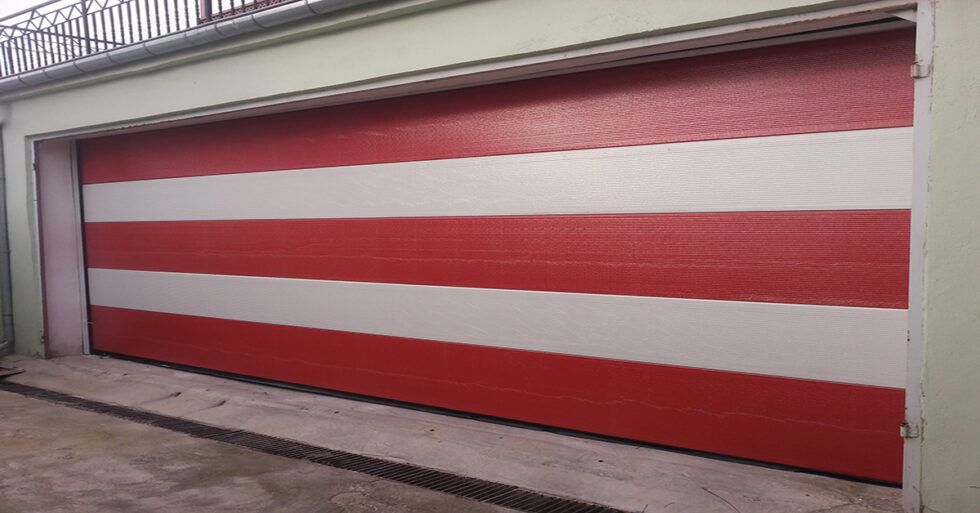

EXAMPLE GARAGE DOOR PHOTOS
